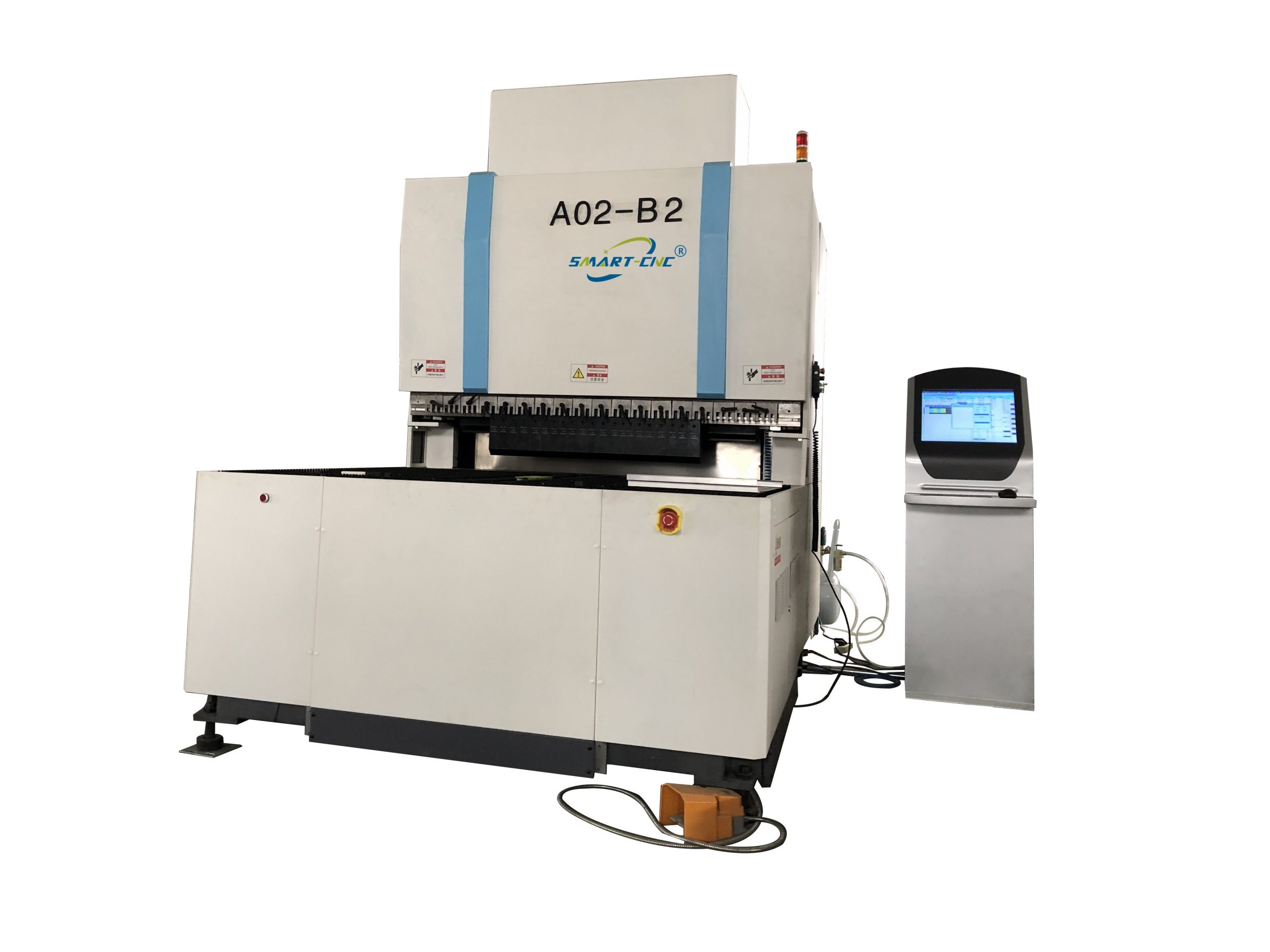

Flexible bending center

Description

III.Main technical parameters

MODEL: C1-2500

NO.	NAME	UNIT	PARAMETER
1.	Feeding structure	/	Press arm type
2.	Max. bending length	mm	2500
3.	Max. bending height	mm	170(optional 300)
4.	Min. bending height	mm	4
5.	Min. molding size of four sides	mm	330*330
6.	Min. molding size of one side	mm	200
7.	Min. arc radius	mm	1.2
8.	Min. continuous bending speed	S	0.2
9.	Bending angle	Degree	0-180
10.	Number of control axes		10 (most up to 15)
11.	Max. feeding speed	m/min	120
12.	Dimension	mm	6200*4300*2500
13.	Total power	KW	43/45
14.	Average power	KW	2
15.	Working table structure	/	Brush
16.	Speed adjustment		Standard
17.	Advanced instructions		Standard
18.	Arc instructions		Standard
19.	Crushed edge instructions		Standard
20.	Loading robot interface		Standard
21.	Hinge knife		Optional



IV.Main components configurations list

NO.	NAME	BRAND	ORIGIN
1	System control unit	SMART CNC	China
2	Servo unit	Designated R&D	Joint venture
3	Linear guides	Rexroth	Germany
4	Ball screw	HIWIN	Taiwan, China
5	Main electrical components	Schneider	France
6	Pneumatic components	SMART CNC	Taiwan, China
7	Bearing	NSK	Japan
8	Reducer	Designated R&D	China
9	Bending machine body	SMART CNC	China



V.Bending thickness range

NO.	PLATE MATERIAL	UNIT	MAX. THICKNESS
1.	Stainless steel (SUS)	mm	1.5
2.	Carbon steel (MS)	mm	2.5
3	Aluminum (AL)	mm	3

Remarks: The bending toolings can be customized according to the thickness of the user’s sheets.



VI.Introduction of bending main body and bending demonstration

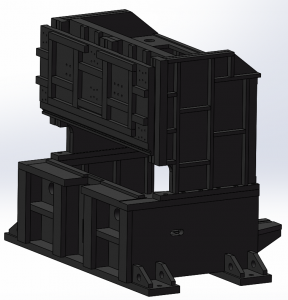

1. 1.Introduction ofthe bending main body





◆ Servo flexible bending center main body, the main body adopts high-strength welding structure, the main structure structure is stable, and the service life is long.

◆ Heat treatment to remove internal stress, strong rigidity, heavy tonnage, ensure long-term stability of the machine accuracy, and improve the bending accuracy, reliability and durability of the machine.



2. Bending demonstration

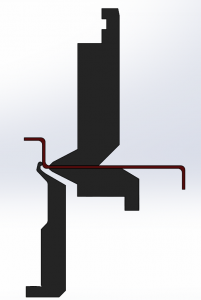

◆Down bending demonstration

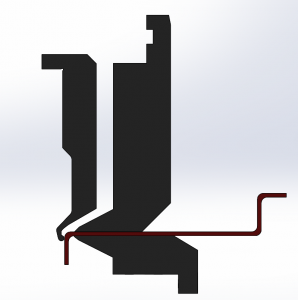

◆Upper bending demonstration



3. Main parts

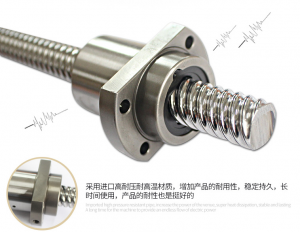

Taiwan HIWIN ball screw

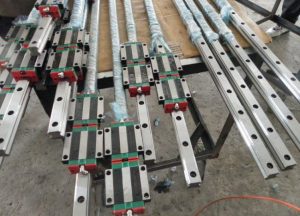

Germany Rexroth linear guide

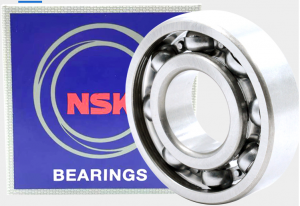

Japan NSK imported bearings



VII.Random documents, random accessories

1. Random documents

NO.	NAME	QTY	REMARK
1.	Equipment packing list	1
2.	Certificate of Compliance	1
3.	User’s manual	1
4.	Electrical schematic diagram	1
5.	CNC system information	1

2. random accessories

NO.	NAME	SPECIFICATION	QTY
1.	Quick-plug air gun		1 SET
2.	Allen wrench	S1.5-S10	1 SET
3.	Equipment foot pad		1 SET
4.	Hose	Ø 8	5 METERS
5.	T type tee	Ø 8	2 SETS
6.	Nylon cable tie	L200	30 LINES
7.	Socket head cap screws	M10*45  12.9 level	6 SETS

VIII.User cooperation matters

1. Power supply: 3Phase Customized,the voltage fluctuation is -5%～+10%; when the voltage fluctuates greatly, the user must be equipped with a voltage stabilizer, otherwise it will cause the low-voltage electrical appliance to be in an abnormal working state, and the life of the electrical device will be reduced or broken,processing products are scrapped, motor alarms cause stop working, computer hard disk damage and other problems.
2. Air source: output above 0.6Mpa, dry and clean compressed air, air supply volume 0.3m3/min; if the air is not dry enough, the user should be equipped with a refrigeration dryer, otherwise there will be water in the pneumatic componentsand thencause the frictional resistance of the piston to increase, also the wear of the sealing ring will cause air leakage and other problems. Especially in winter, it is easy to freeze, leading to aggravated damage to the pneumatic components.
3. Ambient temperature: 0°C ～ +40°C; lower than 0°C will cause the oil-water separator, gas tank and other partswith watermay freeze. The lubricating oil will be too viscous due to low temperature, which will affect the lubrication effect, which resulting in damage or failure of components.
4. Environmental humidity: relative humidity 20～80%RH (non-condensing).
5. Keep away from strong vibration sources and electromagnetic interference; if the distance is too close, users must be equipped with filters, otherwise it will cause computer screen flickering, LED light flickering, driver alarm, encoder abnormality, or interference with other nearby equipment.
6. Theenvironment with little dust, no harmful and corrosive gases.
7. The foundation is prepared according to the supplier’s foundation plan.
8. The user should select personnel who have a high school level or above, understand basic computer operations, and can work in this position for a long time for training.
