TECHNICAL PROPOSAL

(i)Main Performance Characteristics

1.   Machine Performance

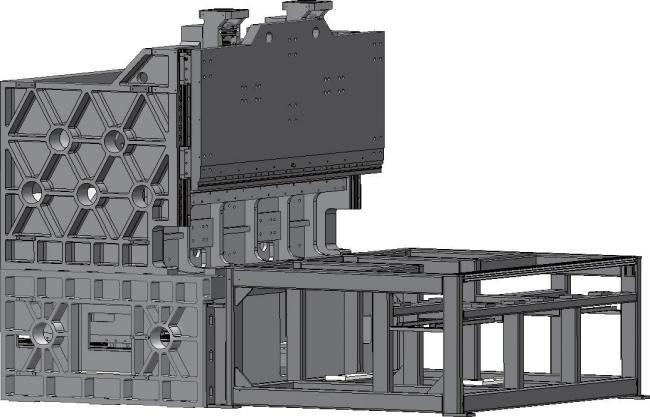

The Smart series is a flexible and intelligent panel bender machine designed and produced according to high-precision machine tool standards.  It is made of high-specification castings, and both the cast and welded parts are subjected to strict stress relief processing. High-precision machine tools are used for integrated processing, ensuring long- term accuracy, stability, and high rigidity during operation.

2. Axis Configuration Description

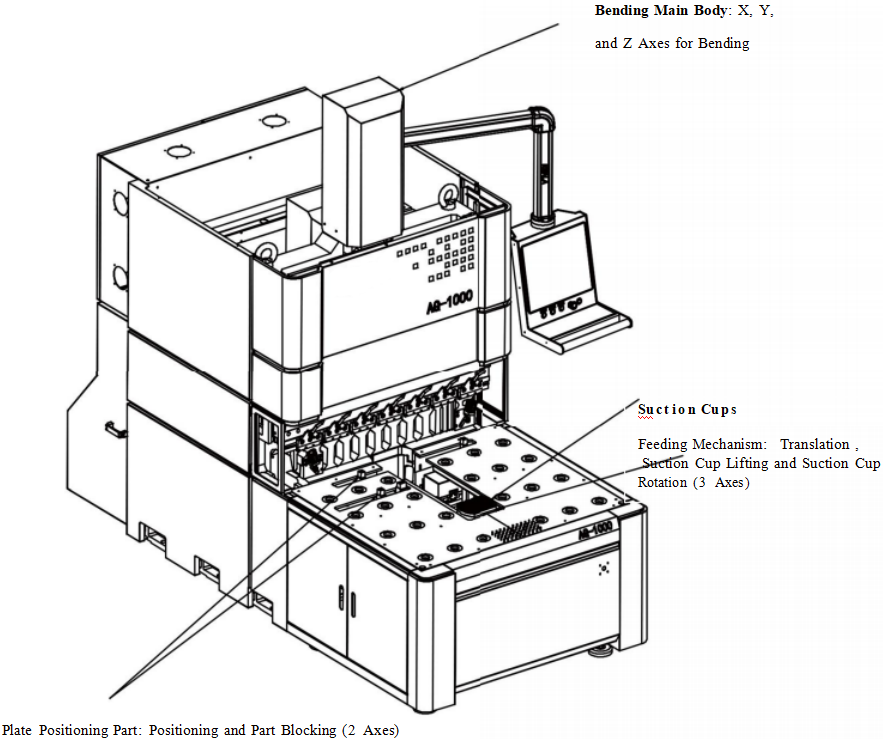

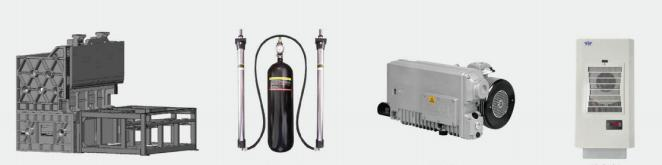

The machine is equipped with a total of 8 axes, including 3 axes for the bending main body (X, Y and Z  axes), and  3 axes for the feeding mechanism (translation, pallet lifting, and pallet rotation). The plate positioning part includes 2 axes for positioning and part blocking.

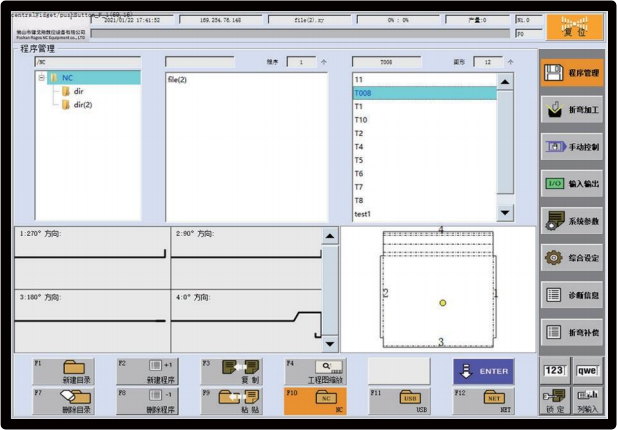

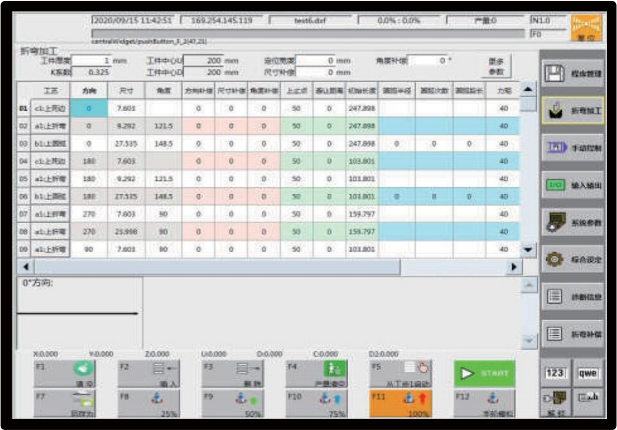

3. CNC Control System

(II)Main Bending Process

1. Bending Process Description

Bending Process Requirements:

1 . The surface of the material to be bent cannot have downward protrusions, as this may cause

interference with the workbench and prevent automatic bending.

2.  For  suction  cup  bending  centers,  when  bending  all  four  sides  of the  material, there should  not be large  openings  in  the  center  of the  material,  as  this  will  prevent  the  suction cups  from  holding  the material  in  the  center.  For  pressing  rod  bending  centers,  there should  be  a space  reserved  for pressing  the  material .

3.  . The distance from the edge of the hole to the bending edge should be ≥ 5mm . Otherwise, there may

be a pulling effect after bending (the larger the thickness of the material, the larger this dimension should

be).

4.  . After  forming,  the  bending  direction  can  only  be  bent  in  one  direction, ultimately  facing downward.

5.  . Whether  the  bending  center  can  bend  automatically  depends  on  the  bending process  and  sequence  of the  part.  The  final  decision  will  be  based  on  the approved  drawing .

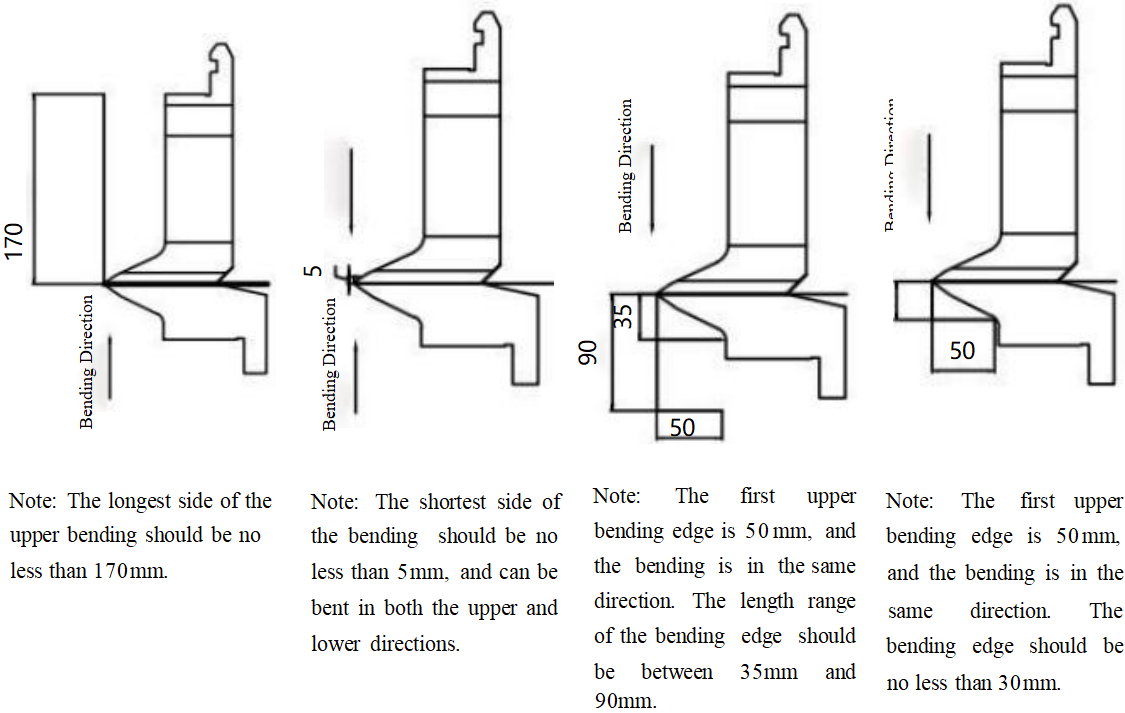

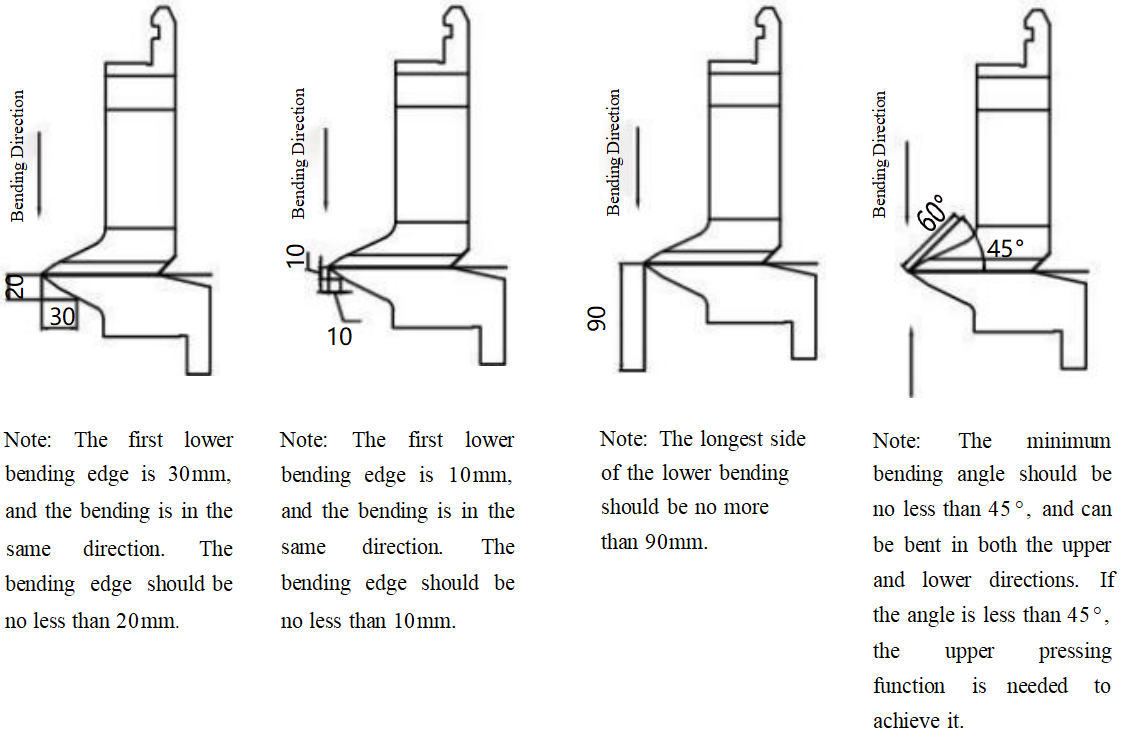

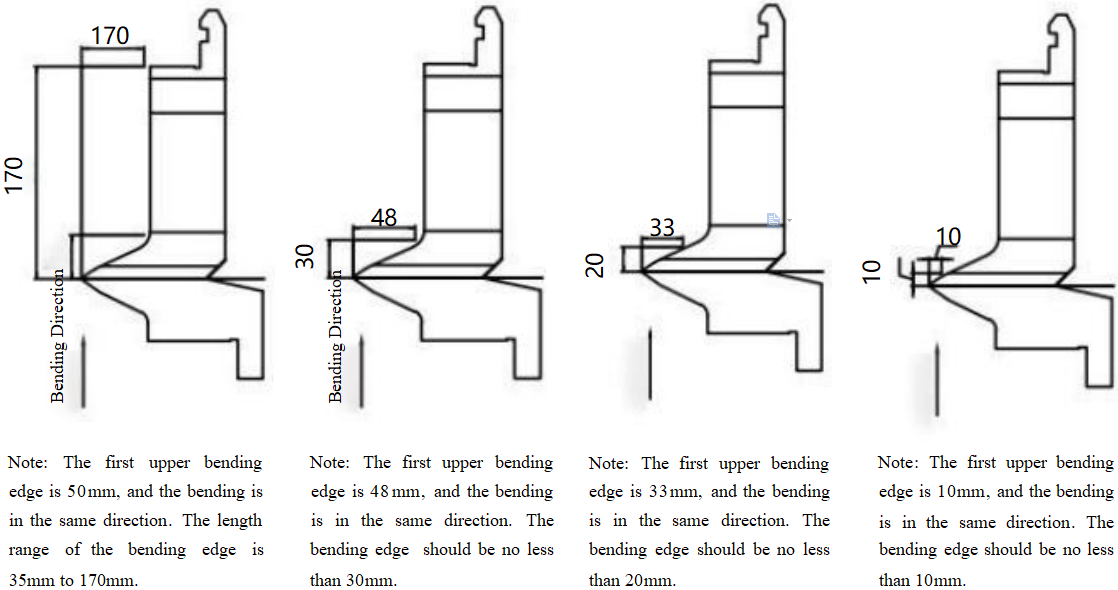

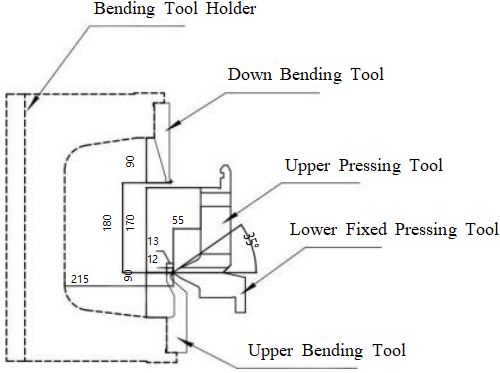

6.  . The  dimensions  of the  bending  tools  in  the  figure  on  the  right  are  standard, and  can  be  customized  according  to  customer  requirements .

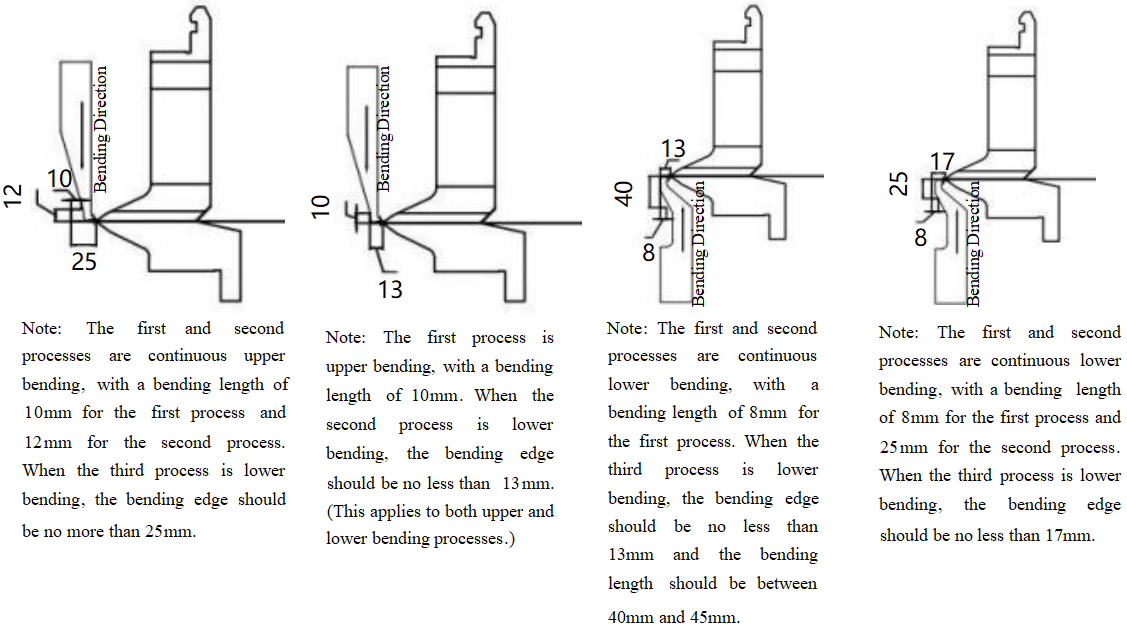

7.  . The  figure  above  shows  some  examples  of upper  and    lower  bending .  The    actual dimensions

will be based  on the  size  of the product.

2. Basic Bending Dimension Requirements for Some Parts

3. Diagram of partial reverse direction bending requirements

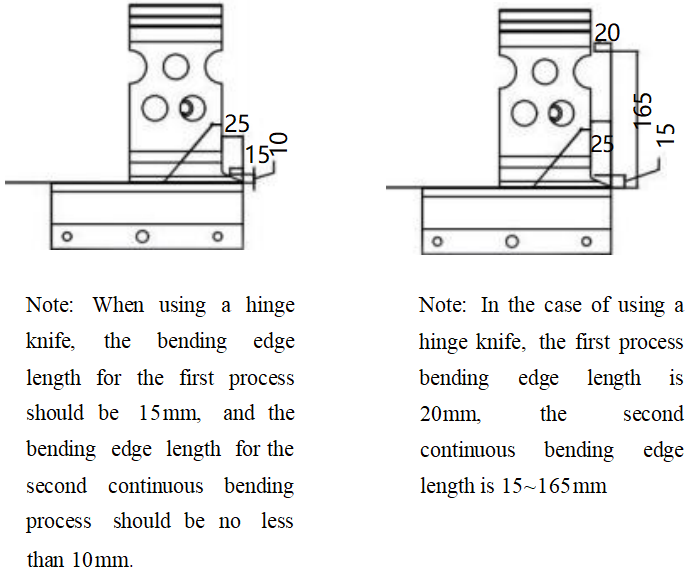

4. Requirements for the use of partial hinge knives

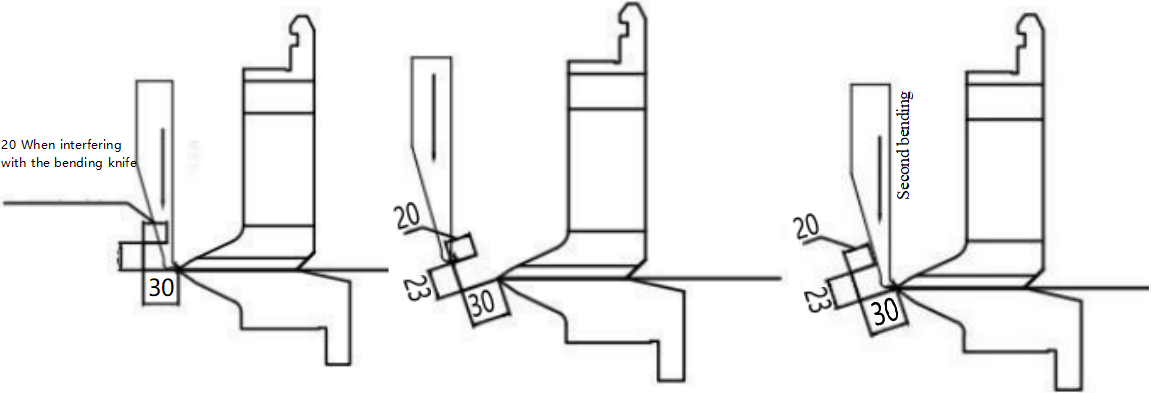

5. Special bending processes

Note:  Special  bending  processes  may  result  in  inconsistent  deformation  compared  to  regular bending processes.  It  is  necessary  to verify  whether  the  actual  process  can  meet  the product requirements.

(iii)Bending Size Range

1. Minimum range of bending edge sizes for the AG series

Plate thickness(mm)	0.3~0.6	0.7~1.0	1.1~1.2	1.3~1.5	1.6~2.0
Minimum Size(mm)	4	5	6	8	10

2. Tolerance Range for Bending Size and Angle in AG Series

Length(mm)	300~500	501~800	801~1000	1001~1200	1201~1500	1501~1800	1801~2000	2001~2500
Dimensional tolerane at both ends(mm)	±0. 1	±0. 1	±0. 1	±0. 1	±0. 15	±0.25	±0.25	±0.25
Angular tolerance(°)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.75	±0.75	±0.75
Diagonal tolerance (mm)	±0.5	±0.5	±0.5	±0.5	±0.75	±0.75	±0. 1	±0. 1

(iv)Main technical parameters

Name	Unit	AG-1000 (suction cup)
Bending length	mm	1000
Sheet length	mm	1100
Sheet width	mm	1000
Bending height	mm	170
Total bending length	mm	200
Minimum formed internal dimensions on all four sides	mm	350×150
Double-sided minimum formed internal dimensions	mm	150
Minimum radius of circle	mm	1.2
Fastest continuous bending speed	s	0.5/Knife
Distance between upper and lower knives	mm	180
Bending angle	°	0-360°
Maximum material thickness	mm	Aluminum plate: 2.0 Carbon steel: 1.5 Stainless steel: 1.2
CNC control system	Cell	Star300-LGx
Operating systems	OS	Win7+OS
Number of axes	axes	8 axis as standard

Machine dimensions	L	mm	3160
	W	mm	1440
	H	mm	2870
Machine weight		kg	6000
Total power		KW	23.95

(IV)  Main Advantages

(vi) Random information, random attachments

Name	Quantity	Remarks
Toolbox	One set
Bottom foot cushion foot	One set
Foot switches	One set
Power cord

(vii) Machine site installation requirements

1. Hydraulic oil: imported VG46# anti-wear hydraulic oil.

2. Power supply: 380V50HZ, voltage fluctuation of 10% – 5%

3. Ambient temperature: 0oC- +40oC

4. Ambient humidity: 20-80%RH relative humidity (non- condensing)

5. far from strong vibration sources and electromagnetic interference

6. dust-free and free from harmful and corrosive gases

7. the foundation should be prepared according to the foundation plan of the supplier

8. the user should be trained to use the machine.

Quality inspection

1. Cleaning and inspection of parts before assembly, including racks, molds, work surfaces, etc. Ultrasonic cleaning is used, and the hardness of the mold is tested, and important parts are performed three-coordinate inspection.

2.During assembly, professional and technical personnel will assemble and clean each part and apply butter. Lubrication, precise installation in accordance with advanced procedures, and dial gauge adjustment to that all components are installed properly.

3. After the assembly is completed, perform processing tests on the machine in accordance with the process requirements to ensure the action of the machine is complete and there is no abnormal noise.

4. After the test run, the machine shall be further debugged and inspected, and the electric power of the machine shall be checked the operation of the device and the system and adjust the system parameters. For upper and lower knives, workbenches, suction final commissioning and accuracy testing of the pan, positioning system and oil circuit system.
